Lightbar Wiring Harness + CANBUS Module | Toyota Prado 250

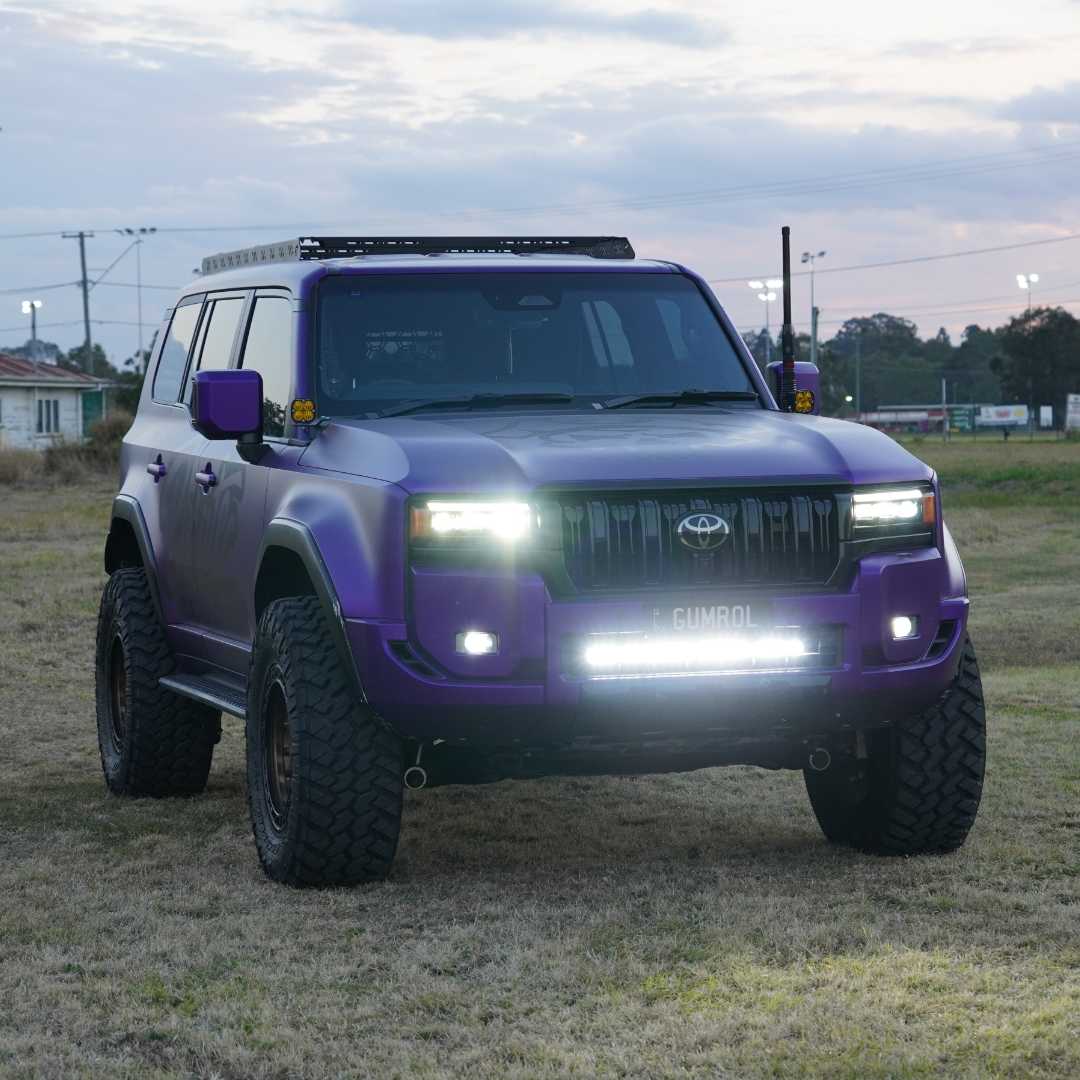

Adding an LED light bar to the Prado 250 shouldn’t mean cutting into factory wiring or spending half a day pulling the vehicle apart.

This plug-and-play CANBUS high-beam pickup harness provides the trigger signal needed to connect aftermarket driving lights while retaining the Prado’s factory high-beam operation, including the automatic high-beam function.

The CANBUS module reads the vehicle’s digital lighting signal and converts it into a low-current 12V output for your driving-light relay harness. Installation is straightforward, with no splicing into the factory headlight wiring and an estimated fitting time of approximately 10–15 minutes.

Built for Easy DIY Installation

The vehicle-specific harness connects neatly into the Prado’s factory wiring, giving you a clean and reliable high-beam trigger without the usual guesswork.

Features

• Vehicle-specific plug-and-play CANBUS harness
• Provides a high-beam trigger for spotlights or LED light bars
• Compatible with the factory automatic high-beam system
• No cutting or splicing into factory headlight wiring
• Approximately 10–15 minute installation

• Clean, reversible installation

How It Works

Modern Toyota lighting systems communicate through the vehicle’s CANBUS network rather than relying on a simple high-beam wire that can be tapped directly.

This interface reads the factory high-beam command and provides a low-current 12V trigger that can be used to activate the relay in your spotlight or light-bar wiring loom.

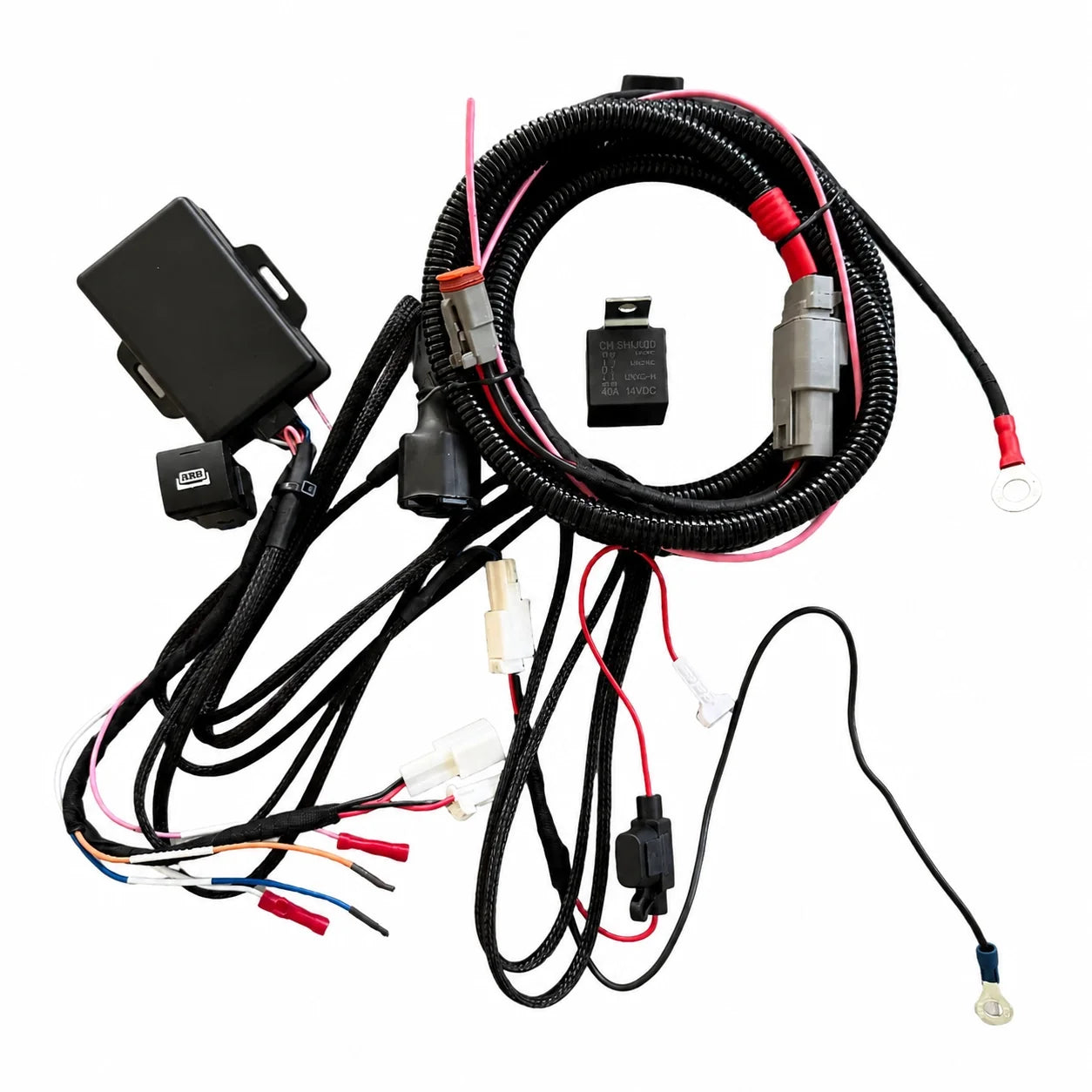

Kit Includes

• 1 × CANBUS interface module
• 1 × Lightbar wiring harness
• 1 × Switch
